Every so often I get asked about creating a corporate phonebook or mobile phonebook for SharePoint. I have been doing a lot of planning sessions this week and needed something creative to do, so here’s something fun.
I decided to create a lightweight people search page for mobile devices.

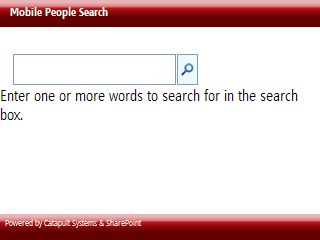

I created the page starting with an regular ASPX page. After adding a web part zone I dropped a People Search Box and People Search Core Results web part. I finished it up with a little CSS and this is the result.
The best part is that you don’t need to be an administrator to implement a solution like this. Just upload the files to any document library and you’re good to go. Here are some of the finer points…
Create the Page
- Open a document library in SharePoint Designer. Choose File | New | ASPX.
- Give the page a name and open the page for editing.
- Replace the with page tag "<%@ Page Language="C#" %>" with:
<%@ Page language="C#" Inherits="Microsoft.SharePoint.WebPartPages.WebPartPage,Microsoft.SharePoint,Version=12.0.0.0,Culture=neutral,PublicKeyToken=71e9bce111e9429c"meta:progid="SharePoint.WebPartPage.Document" %> <%@ Register Tagprefix="SharePoint" Namespace="Microsoft.SharePoint.WebControls"Assembly="Microsoft.SharePoint, Version=12.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %> <%@ Register Tagprefix="WebPartPages" Namespace="Microsoft.SharePoint.WebPartPages"Assembly="Microsoft.SharePoint, Version=12.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %> <%@ Register tagprefix="SPSWC" namespace="Microsoft.SharePoint.Portal.WebControls"assembly="Microsoft.SharePoint.Portal, Version=12.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %> <%@ Register tagprefix="WebControls" namespace="Microsoft.Office.Server.Search.WebControls"assembly="Microsoft.Office.Server.Search, Version=12.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %> <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN""http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd">

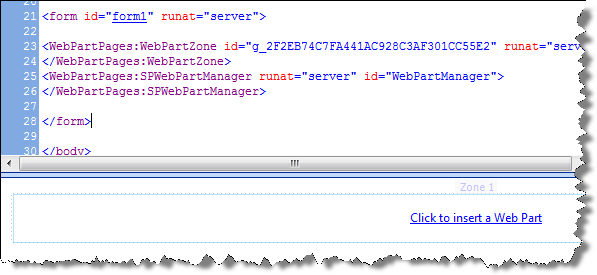

- Add a web part zone by choosing Insert | SharePoint Controls | Web Part Zone. Your page should look like this in SPD.
Add Web Parts
- You only need two web parts to make this work. Drop a People Search Box and a People Search Core Results Web part.
- Change the Target search results page URL to point to your page, so that the query will just return this page.
- Uncheck Show Search Options.
- I removed the RSS feed by setting the results DisplayRSSLink property to false.

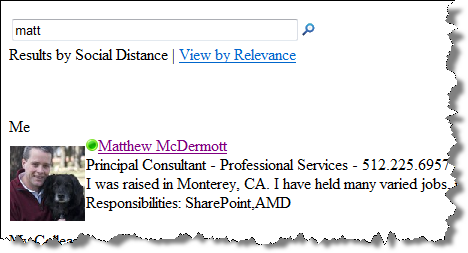

- View your page and you should see something like this:
Click-able Phone Numbers
At this point I browsed the page with my phone. I use an HTC phone with Windows Mobile 5. I was disappointed to find that my phone did not recognize the numeric pattern of my phone number. The whole point of this exercise is to click the phone numbers and have my phone dial. The solution was simple, though it took a while to find. The "tel:" hyperlink is read by the phone as a click-able link.
- Open the XSL for the Core Results Web part and locate the DisplayOfficeProfile template.
- Locate the code:
<xsl:value-of select="$phone" />
- Change the code to:
<a href="tel:{$phone}"><xsl:value-of select="$phone" /></a>

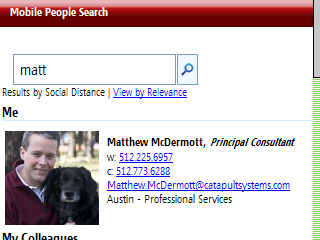

- Refresh your page and your phone numbers should now be rendered as hyperlinks.
Wrap It Up
Configuring the page and making it work took a few minutes. Formatting the page and painstakingly applying the CSS took a couple hours, though I think you agree that it is worth the effort. I added a few extra bells and whistles. I placed a named link at each level of My Colleagues, My Colleagues Colleagues, and Everyone Else. I set it up so when I click 1 the screen jumps to My Colleagues; 2 My Colleagues Colleagues; 3 Everyone Else; * back to the top. I also removed the links to the personal sites and presence indicator, though I plan to install Mobile Communicator so I can play with that…later.
Here are the files: Mobile People Search Files
First of all let me tell you that this is exactly what I wanted. So, thank you very much for this wonderful post. Now coming back various possibility, I was just wondering if somebody who used this implemenation ask for a functionality where in all the contact details can be save to the mobile phone book but just a click. I know it may differ based on the Phone OS, but just wanted to know the possibility. As we know most of the smartphones which are available in the market (iPhone, Windows, Android, BB), we can always come up with different code/page for these smartphones and can render it based on the type of phone browsing the page. Your thoughts and any direction would really help me further.
Once again thanks for this beautiful article.
Regards,
Paddy
Paddy, I haven’t tried that, my phone get’s its contacts from my Outlook instance. I wonder if you created a link on the page to open a vCard (like a calendar object, but for people)?
I tried using your code, but does it require some setting if it has to be used. If yes, then please share the same as it not working for me.
Regards,
Paddy
Paddy, can you provide a little more detail? This is an old post for SharePoint 2007. SharePoint 2010 supports mobile search out of the box. Let me know.
